It’s in the manual, see page 7
- to add a separate power supply to the preamp section:
Switch off at mains

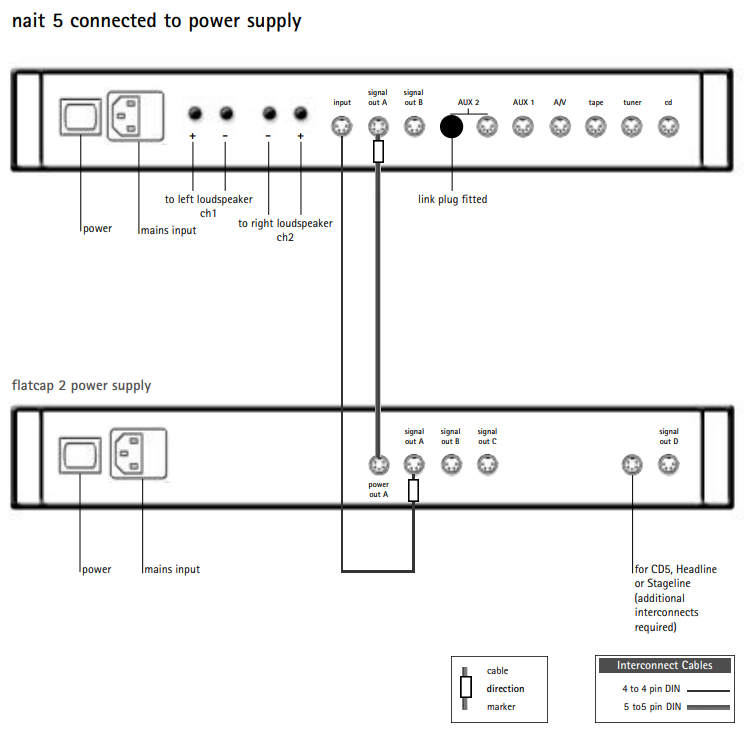

Refer to diagram on page 7
Remove all the link plugs
Connect SNAIC 5 between nait and power supply and SNAIC
4 between power supply and nait as shown in the diagram
Switch on power supply and amplifier.
