I put your question into AI, might be of some use.
Grok AI says:
Converting reel-to-reel tapes to digital is a solid project, and with 20 reels, you’ll want a setup that’s straightforward and reliable without breaking the bank. Since you’re aiming for decent quality and have a MacBook Air or Mac Mini M4 with 3.5mm, RCA, or DIN outputs from your reel-to-reel (R2R) player, here’s a practical approach to get you started.
Equipment Recommendations
Reel-to-Reel Player Maintenance
First, ensure your R2R player is in good working condition. Tapes can be fragile, and a poorly maintained deck can damage them. Check for consistent playback speed and clean the tape heads and pinch rollers with isopropyl alcohol (90% or higher) and a lint-free cloth. If your player hasn’t been serviced in a while, consider a professional tune-up, especially for 20 reels, to avoid issues like tape stretching or inconsistent playback.
Audio Interface (Analogue to Digital Converter)
You need an audio interface to convert the analogue signal from your R2R player to a digital signal for your Mac. Given your “decent quality” goal, a budget-friendly yet reliable option is the Focusrite Scarlett Solo (4th Gen) (~$140). It’s compact, USB-C powered (perfect for MacBook Air or Mac Mini M4), and offers high-quality audio capture with low noise.

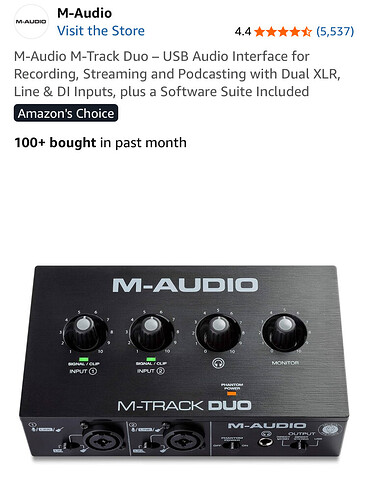

AI is wrong here, this device doesn’t have RCA inputs, search for another converter
RCA to RCA: If you use the RCA outputs on your R2R player, get a dual RCA to dual RCA cable (e.g., Amazon Basics RCA Audio Cable, ~$10) to connect directly to the Scarlett Solo’s RCA inputs.
DIN Output: If you prefer the DIN output, you’ll need a DIN-to-RCA adapter or cable (~$15–20, available on Amazon or eBay). DIN connectors were common on older European audio gear, so confirm the pin configuration (usually 5-pin) before buying.
3.5mm Headphone Jack: Avoid using the headphone jack if possible; it’s typically lower quality and harder to control for clean recording compared to RCA or DIN line outputs. If you must use it, get a 3.5mm stereo to dual RCA cable (~$8) to connect to the audio interface.
MacBook Air or Mac Mini M4
Both are excellent for this task, as they support USB-C and have robust audio processing capabilities. The Mac Mini M4 might have a slight edge for sustained performance if you’re batch-processing large files, but either will work fine. Ensure you have enough storage (each reel could produce 1–2GB of uncompressed WAV files, so 20 reels might need 20–40GB).
Recording Software
Audacity (free, open-source) is the go-to for simple, high-quality audio capture on macOS. It’s user-friendly, supports 24-bit/96kHz recording (sufficient for your needs), and allows basic editing like trimming and noise reduction. Download it from audacityteam.org and ensure it’s compatible with macOS Sequoia (or whatever version your M4 Mac runs).
Alternative: GarageBand (free on macOS) is another option if you want a more polished interface, though it’s overkill for basic capture. For more advanced editing, Adobe Audition (~$23/month) is powerful but unnecessary unless you’re doing heavy post-processing.
Step-by-Step Process
Inspect Tapes
Check each reel for damage (mold, stickiness, or brittleness). If any show signs of “sticky shed syndrome” (gummy residue or flaking), don’t play them—seek professional restoration, as playing damaged tapes can ruin them and your player.
Set Up Equipment
Connect your R2R player’s RCA or DIN output to the converters RCA inputs using the appropriate cable. Plug the converter into your Mac’s USB-C port.
Test the R2R player to confirm it’s playing at the correct speed (commonly 7.5 IPS or 3.75 IPS for home recordings). Check your player’s manual or tape labels for speed settings.
Configure Audio Settings
In macOS, go to System Settings > Sound > Input and select the converter as the input device.
Open Audacity, set the project sample rate to 96kHz and bit depth to 24-bit for good quality without massive files.
Play a loud section of a tape and adjust the converter gain knob to keep levels peaking around -12dB to -6dB in Audacity to avoid clipping (distortion).
Record
Press “Record” in Audacity, then start the tape. Let it run in real-time, monitoring for any issues. Label each file clearly (e.g., “Reel_01_Side_A”).
Save recordings as WAV files for a high-quality master archive. You can later export to MP3 for easier sharing if needed.
Basic Editing
Use Audacity to trim silence, split tracks (if your reels have multiple songs), and apply light noise reduction for hiss. Be cautious with noise reduction to avoid dulling the sound.
Backup
Store your WAV files on an external hard drive or cloud service (e.g., iCloud, Google Drive). A 1TB external drive (~$50) should handle all 20 reels with room to spare. Keep your original tapes in a cool, dry place as a backup.
Tips for Decent Quality
Cleanliness: Dust or dirt on tapes or player heads can degrade sound. Use a soft brush or cloth to clean tapes gently before playback.
Tape Settings: If your R2R player has tape type settings (e.g., LH, EE), use the default (LH) unless your tapes specify otherwise (e.g., Maxell XLII or TDK SA for EE). Incorrect settings can dull the sound or add noise.
Avoid Overloading: Keep recording levels conservative to prevent distortion. Unlike analogue, digital recordings don’t tolerate “red-lining” (hitting 0dB).
Test First: Record a short test clip to check sound quality before committing to a full reel.
Alternative: Professional Services
If this feels overwhelming or you’re worried about tape condition, professional digitization services are a great option. They handle tape restoration, use studio-grade equipment, and save you time. For 20 reels, expect costs of $200–$500 depending on the service and options (e.g., noise reduction, CD vs. USB).
Notable providers include:
Kodak Digitizing (~$30/reel, offers USB or cloud delivery)
Legacybox (~$35–$50/reel, includes cloud access)
ScanCafe (~$0.34/foot, ~$25–$50/reel depending on length) These services are pricier but ensure quality and safety, especially for fragile tapes. Compare quotes, as pricing varies by reel size and output format.
Why DIY?
DIY is cost-effective and gives you control over the process. Since you’re not chasing audiophile quality, the converter and Audacity setup will deliver solid results for personal archives. However, if any tapes are irreplaceable (e.g., family recordings), consider testing your setup on less critical reels first or outsourcing to pros.
Final Notes
Time Commitment: Digitizing 20 reels in real-time could take 40–80 hours, depending on tape length.
Output Options: RCA is your best bet for simplicity and quality. DIN is fine with the right adapter, but avoid the 3.5mm headphone jack unless it’s your only option.
