Naim NAP 160 bolt down din socket diagram

Hi-Fi Corner
1

Hi guys,

Can somebody please upload a photo of the diagram for the bolt down NAP 160 din connector. I need to build a cable to plug between my active crossover and the NAP 160. The active crossover has RCA sockets. :folded_hands:

2

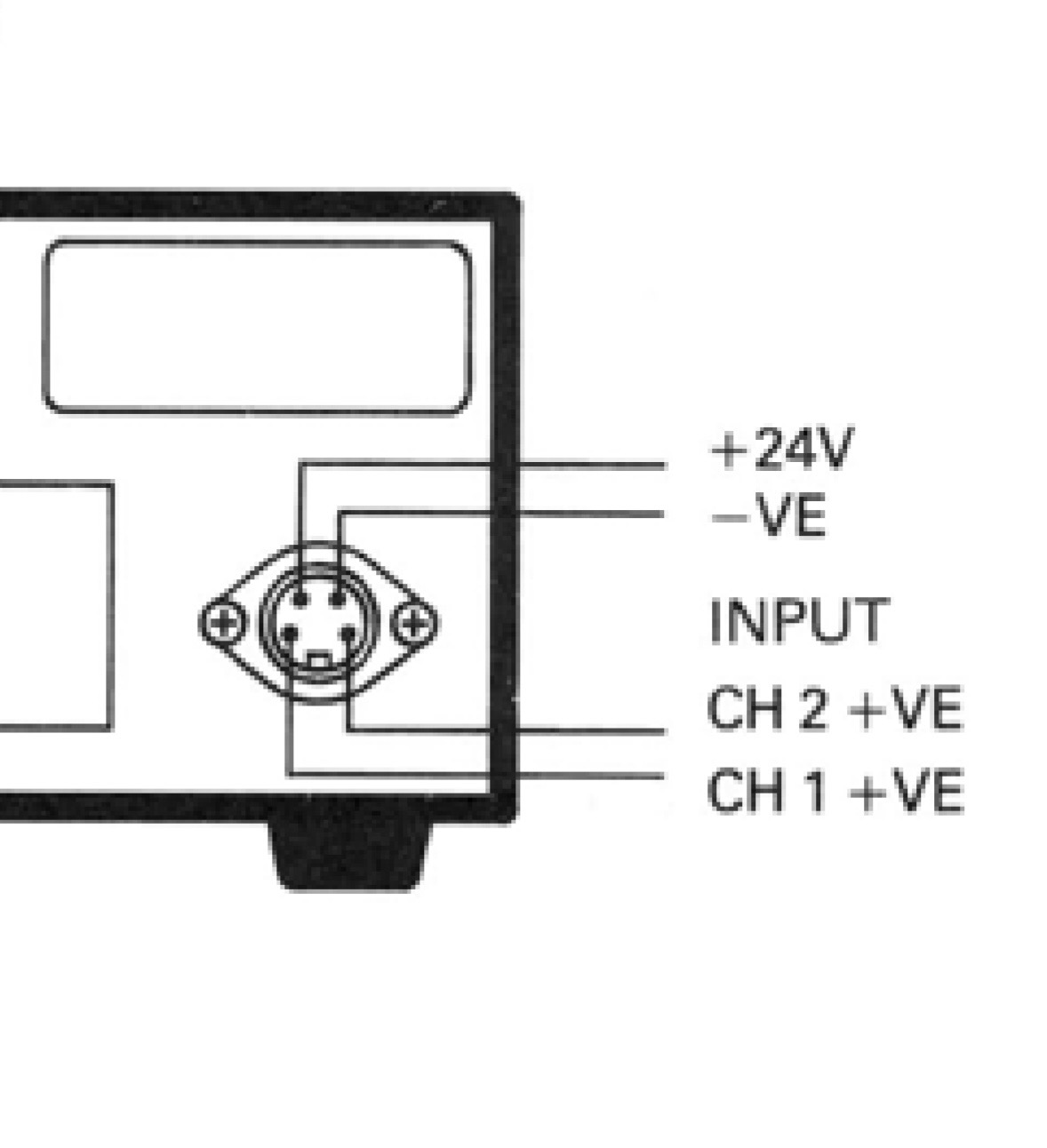

This diagram is for the 110 and 140 - but the pins are going to to be wired the same:

image1178×1292 82.9 KB

1 Like
3

Thank you pal. :folded_hands::folded_hands::folded_hands:
