Excuse me, how do I connect my stageline to Nac 72 and Flatcap XS?

2

Are you using the Flatcap XS got power the NAC72? If so, you should use the Power Out B to power the Stageline (via SNAIC5) and then signal from the Stageline to the NAC72 via 4-5 Interconnect. Be sure to have the signal direction band correct on the SNAIC.

1 Like
3

Thank you very much

4

No the Nac72 is powered by the hicap while the flatcap xs powers the cd5xs.

5

OK, then you’ll use the other power output of the FC, using a SNAIC 5, with the 4-5 to connect to the pre-amp.

6

Ok thank you very much.

7

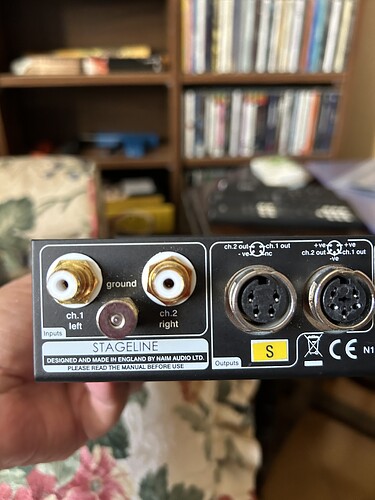

Hello, I received the stageline s that I bought, does it have golden rca connecters, do you think they are yours or have they been replaced? Thank you

IMG_8718
IMG_87183024×4032 2.08 MB

8

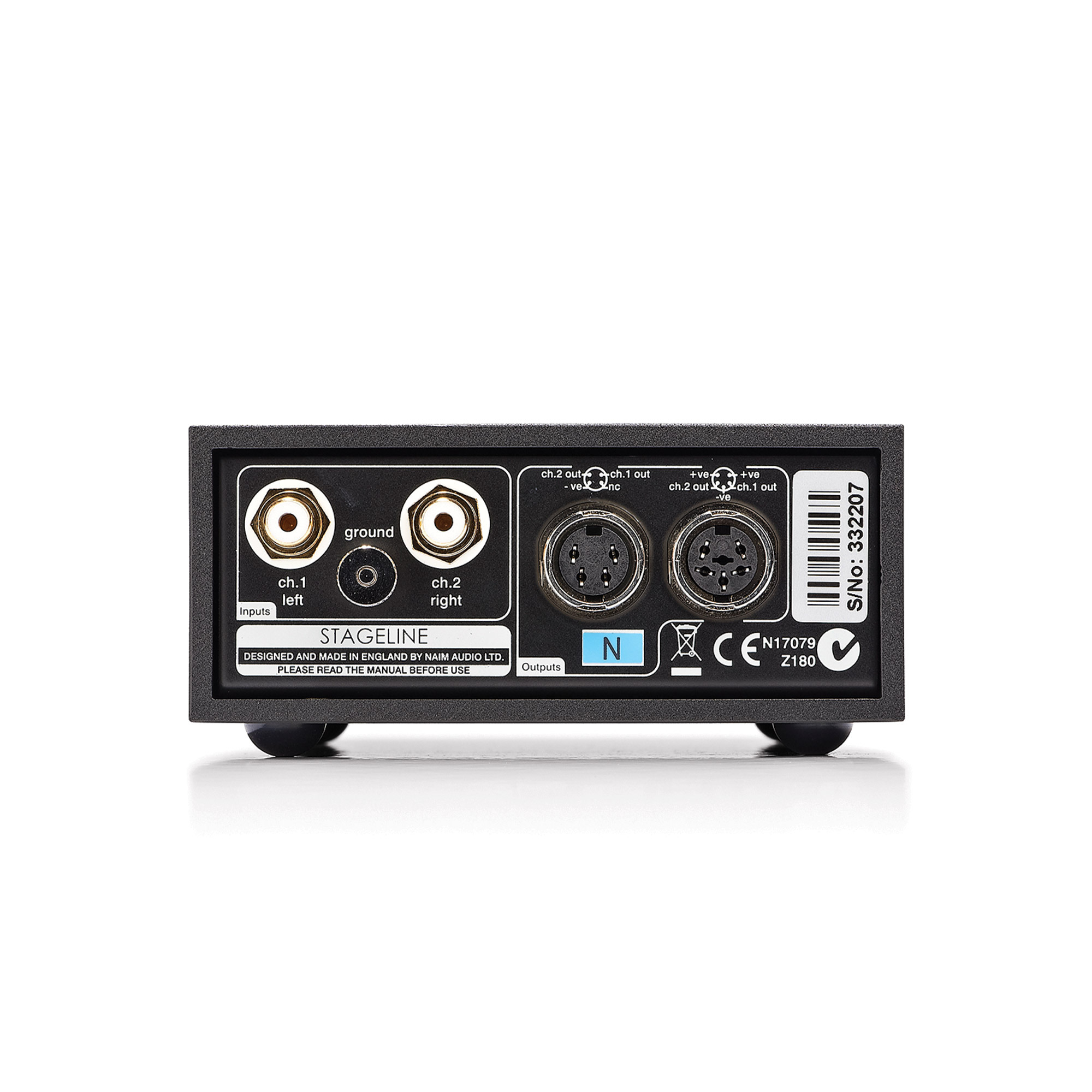

from the picture they look right. Here’s the official picture of the back of the Stageline (N version in this instance) from Naim’s website;

stageline_dos
stageline_dos2000×2000 368 KB

1 Like
9

These are correct for the Stageline. The older models were different however.

10

That’s how my S looks.

11

And mine… :+1:

Amusingly, my Sondek came (in 1982) with RCA connectors. When I acquired the NAC 82 I had to change them to BNC. When “in later days” I acquired the Stageline S, I had to change the BNC back to RCA.

My thoughts at the time were along the lines of, “I wish they’d make their bl00dy minds up!” :laughing:

2 Likes
12

:joy:

13

While the RCA Phonos were standard on the Stageline, you could have Naim fit BNCs as an option if you so wished. I did this with my Stageline K.

2 Likes
14

Thank you but my stageline is fine like this.

15

I think that Naim has always had clear ideas until customers’ and fashion’s trends wanted otherwise.
RCA connectors have never been a standard for line level audio connections in times when science ruled and hifi hype didn’t. BNC have the proper 75 ohm impedance, RCA don’t. That said, Naim has to sell, and audiophiles often make a personal point to know better.
Stageline might have RCA inputs, but preamps from an era when phono meant something have all BNC.

16

You know, that mod never occurred to me. :grin:

1 Like
17

Naim decided to offer the RCA Phonos as standard on the Stageline as it was appropriate for the standard ‘entry-level’ phono stage which would be used with most turntable arm leads that were so terminated. IIRC BNCs were offered as an option but only to order.

The Prefix of course did not use RCA Phonos as it plugged directly into the tonearm and the Superline came with both BNCs and WBT Next Gen RCAs.

Just for reference the correct impedance for the BNCs used on the Phono stages is 50 ohms.

18

I wanted to ask you a silly question, but I want to make sure I’m doing well. The stageline has the connections for the turntable that are ch.1 left and ch.2 right I connected the black cable on ch.1 left and the risso on ch.2 right. I hope I did well.

19

You did it correctly.

1 Like
20

Ok thank you very much
