Hi,
I cannot get any sound out of my system. I have reset it, disconnected everything and reconnected but still no sound. This is the case for both of my sources, cd and vinyl. Am I missing something obvious?
What led up to you not getting any sound out of the system. A power cut, something else ?
1 Like
Normally it’s due to swapping left/right DIN XLR cables.
2 Likes
Suggest check the feed from source e.g. have you selected RCA not DIN?
More likely, you’ve crossed the NAP300 signal cables, as these are handed.
1 Like
The 300 cables look ok - green band in Ch1, red to ch2.
1 Like
How do I switch from RCA to DIN on the preamp?
I had a problem with a chord tuned array cable for my turntable and I think I may have switched from Din to RCA as part of my quest to figure out what was happening.
if I have done this, I don’t know how to switch it back
1 Like
Ah I see
See section 4.2 here

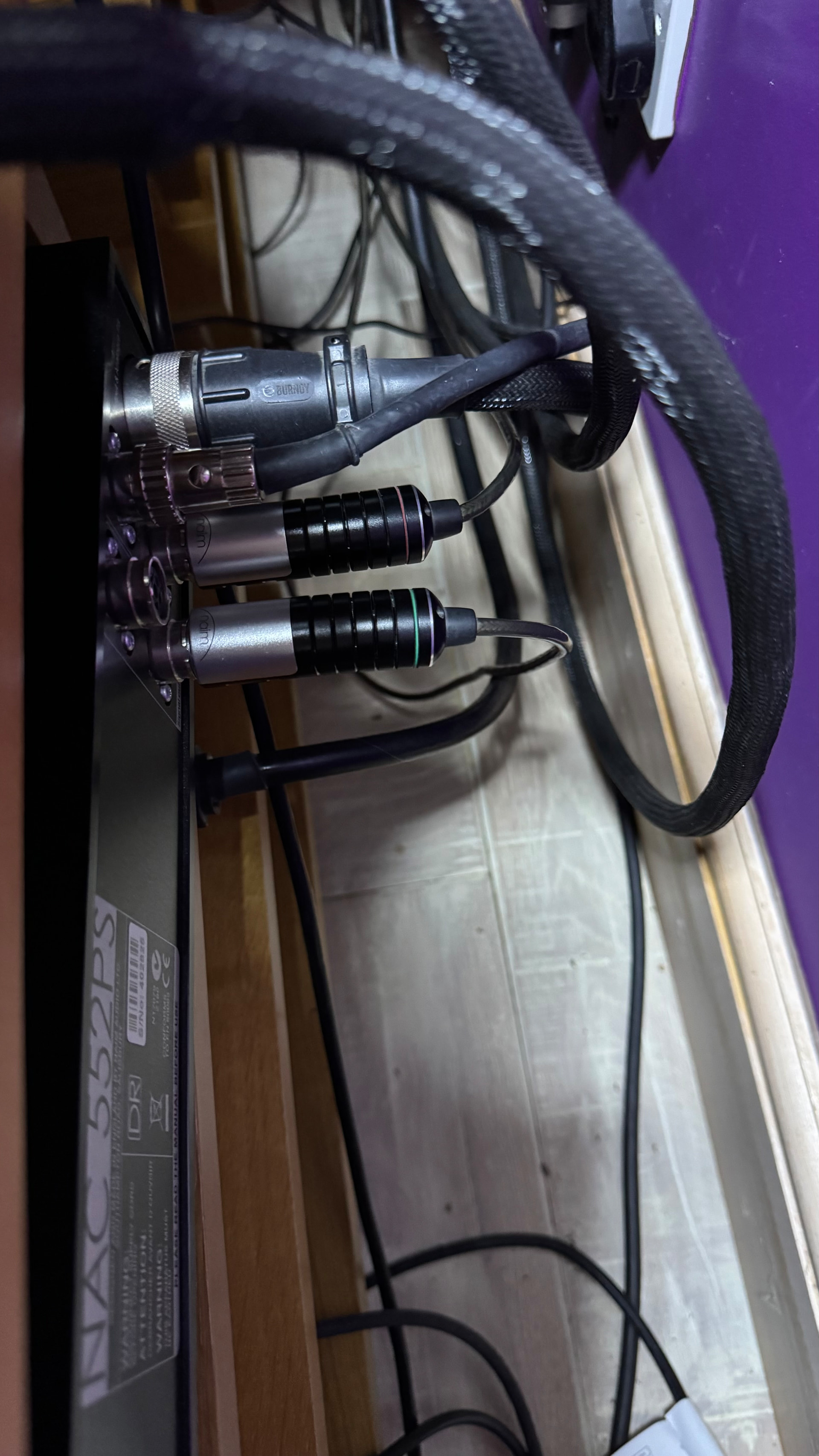

I’m sure you know you can programme the inputs on the 552, but these don’t normally re-set on a power-down/up. Have you looked at the 300’s signal cables yet i.e. the XLR ends?
Edit - the 300 XLRs look OK from a blow-up of your pics.
All sorted. It was two problems.
-
I had switched the cd player from DIN to RCA
-
I had the phone stage set to Mm and not MC
now all working.
Many thanks for all your prompts and speedy support
5 Likes
