SN3/HCDR to NC NAP 250

[Biriv]

Hi Folks,

Aftert reading some mixed info, i need your guidance. I have a SN3 wit HCDR and want to add a NC NAP 250. What cable p/n do i need to make this connection work (from the HC DR) Is it 00-010-0250 or other?

Thank you, much appreciated!

[HungryHalibut]

It’s in the faq here. Option 7.

New Classic cable compatibility

Naim Audio has created a range of cables to connect the new Classic range with earlier products. See the tables below to find the number reference you need for your connection: [IMG_0433] Lead Assembly, Burndy, XPS to New Classic - 19 Way Single to 12 Way and 23 Way Burndy Cable. 00-010-0241 Lead Assembly, Burndy, 555PS to New Classic, Digital - 19 Way Single to 23 Way Burndy Cable 00-010-0242 Lead Assembly, Burndy, 555PS to New Classic, Analogue - 19 Way Single to 12 Way Burndy Cable …

[Biriv]

Hence my question, as i believe i need a 4-pin Y cable …

[HungryHalibut]

Hence my answer. Option 7.

[Biriv]

So, 244 or 250? 2 cables or only 1? I am very serious, as i will bear responsability for the order

[james_n]

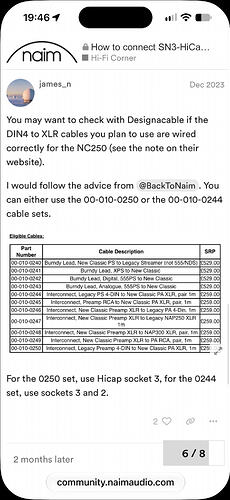

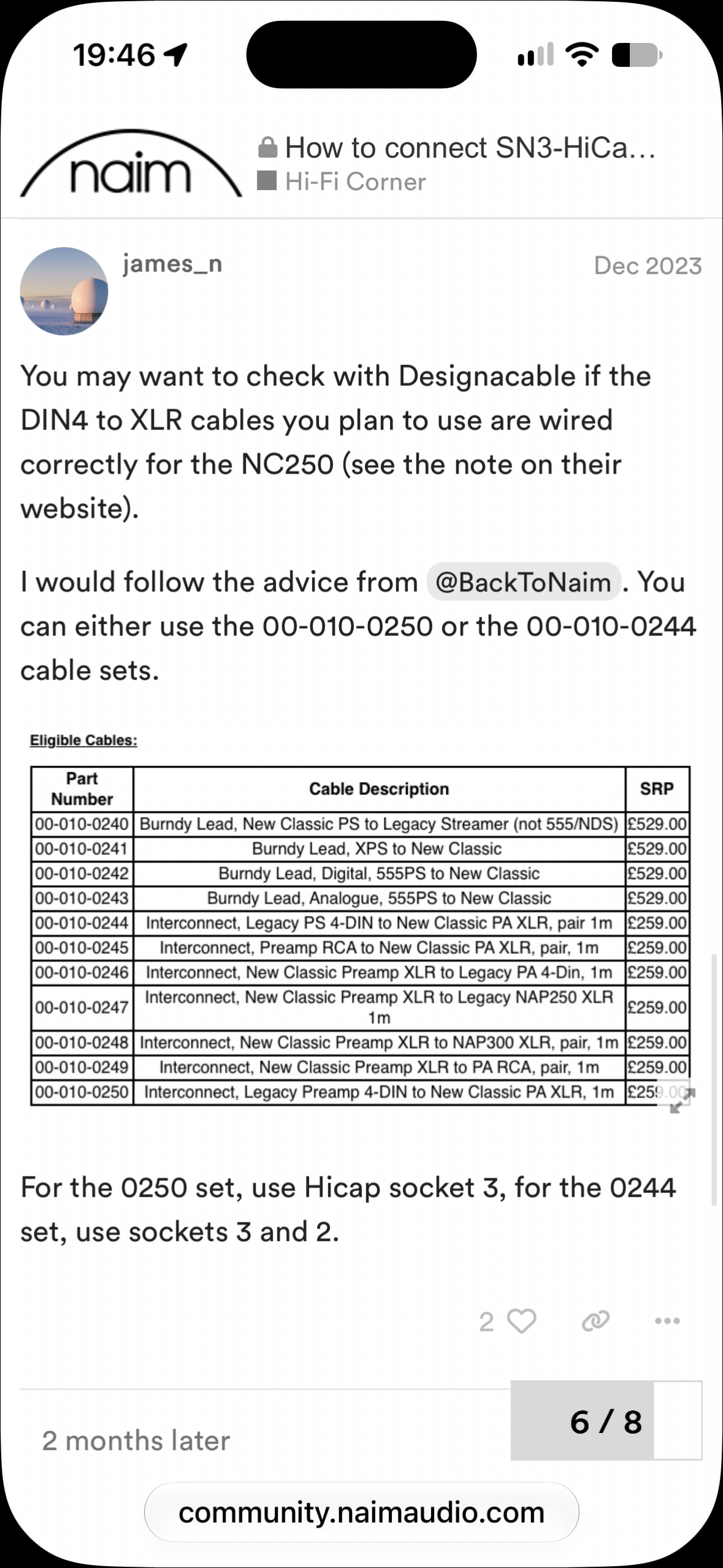

0244 will be fine as you have the two DIN4 outputs on the Hicap to use. 0250 is the Y cable you’d use if you didn’t have a Hicap and were using the biamp DIN4 socket on the SN3.

[Biriv]

So basically i will need to order 1 or 2 pcs of 244 (know it says pair, just doublechecking)?

[james_n]

IIRC, the 0244 cables come as a pair, but your dealer should be able to tell you for certain.

[Jonboy377]

About a month ago I ordered the NPX300 to connect to my NDX2. My dealer knew exactly what cable I needed. If your buying new your dealer should know… Prepare for about a 3 week wait though from the moment you order the cable. As I understand it the legacy cables are made to order. At least that’s what I was told.
