Naim Nac 82 remote codes advice

Hi-Fi Corner
1

Hi I have a NAC 82, without a remote control, I must have sold it or mislaid it a while back.

I am looking to try to control the 82 via Home Assistant with a Broadlink IR controller, so I have been trying to find either a remote that will give me the following controls to change inputs; Phono, CD, Mute, Vol+, Vol- etc.
Or one other option is to find/get the codes that I need to feed into Home assistant
(which look like this)
“vol+”: “JgA0AAkACCgdHzg9NyAbIRkgHB8ZPjkfGiAbIBoAC4QdHTk9Nx8bIBohGx8bPzQjGR0eHxsADQUAAAAA”

I am trying to change the input on the 82 to CD when I want to use Roon for streaming and set the volume and then back to phono when I am finished so I can play records again.

I have managed to get the Vol+ and Vol- working by using a “Philips” remote profile but I cant get the Inputs to change..(I am not even sure if this is possible?)

Any advice on a remote that will change inputs and that doesn’t cost the earth so I can get the codes from it (I have seen other posts about remotes but I need to make sure that I can change the inputs between Phono and CD) or better still any ideas on codes I can try that I can put into Home Assistant would be very welcome…

cheers

2

Naim use the RC5 code set, so you may find that another RC5 handset for a pre-amp or integrated amp will also operate some functions on the NAC82. Of course, it’s no substitute for a proper Naim Narcom, so I would get one of those if I were you - any generation of Narcom will work here, although for a NAC82 the original would have been a Narcom or Olive Narcom 2.

If you want the discrete RC5 codes for custom install control then you should get in touch with Naim support.

3

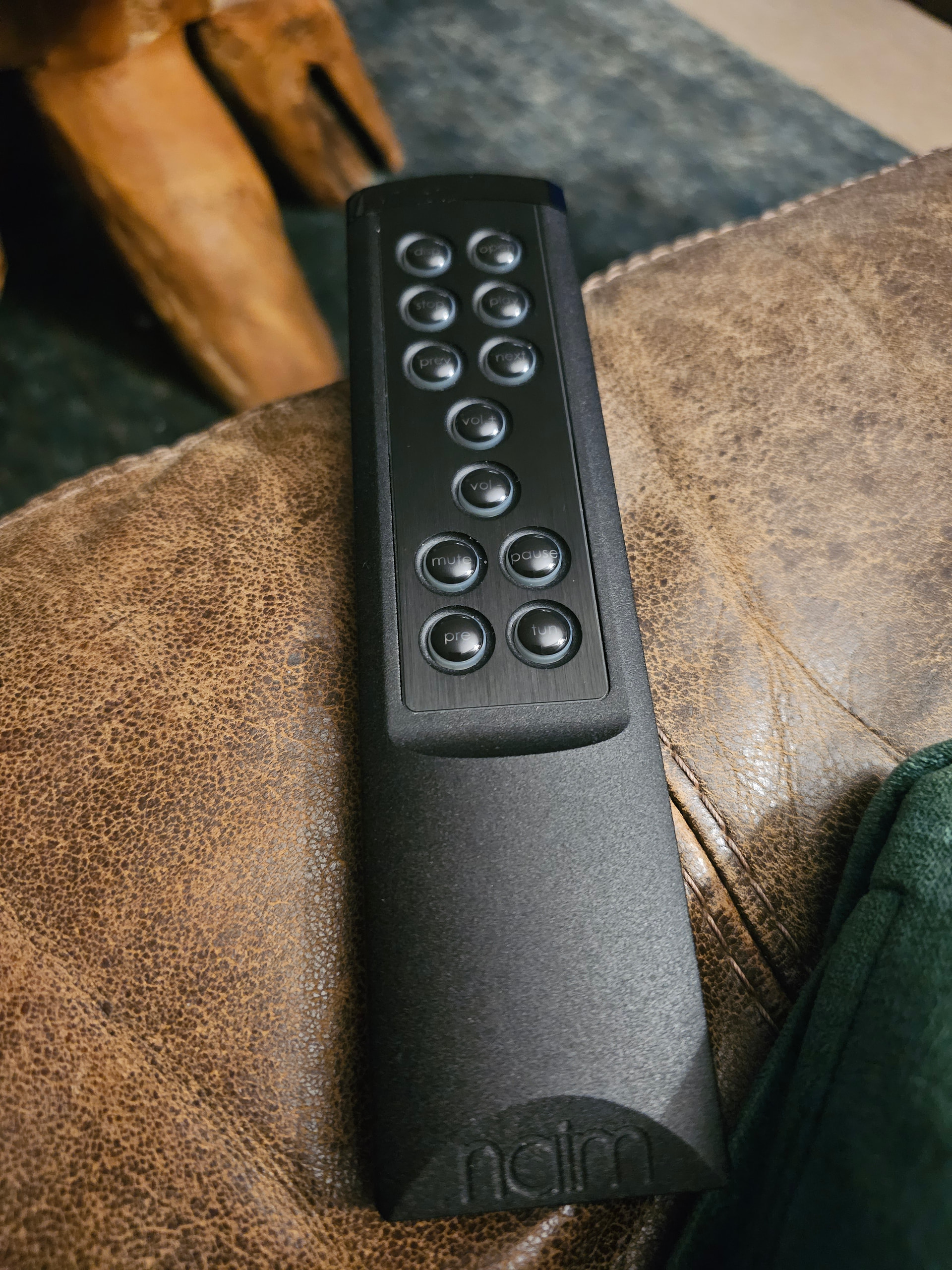

This is the remote I use with my 82.

image1920×1440 580 KB

4

This might help:

1 Like
5

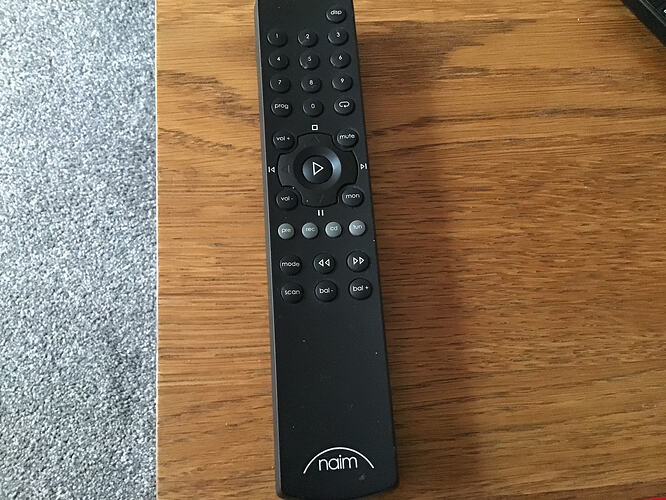

Try one of these. Can double up for any home defense duties too.

1000051366
10000513661920×2560 1.2 MB

6

thanks @Mickyh one quick question can you select the phono input with this remote?
That is one important factor for me, but this looks good.

7

You press the pre button, and then the number of the input you want. So 1 for phono, 3 for tuner etc.

8

Yes, as HungryHalibut says below

9

thanks for the advice on this @HungryHalibut and @Mickyh I have now purchased a remote and copied the codes so I am automating this in Home Assistant, cheers

1 Like
