Show us what's inside

Well it is comparing different things really. QC in mass production is far easier than on production by piece. It depends strongly what components are selected to be used and how they are applied.

The only time I got foodpoisioning was in a Michelin star restaurant, never at McDonalds. Why? Because they use different ingredients and apply them differently.

The very same applies to hifi.

@davidng this crossed my mind too, I wondered if it was to do with the collective electrical characteristics of many smaller capacitors having some advantage over one larger one? Or perhaps it’s commercial? Lots of automated insertion caps verses the installation of a few by hand?

I shall do a little research.

Either way the maintenance/ fault finding and ultimately replacement of lots of caps will be a pain and costly.

My thoughts as well, those R-2R ladder DACs do look cool though.

It has an advantage with lower ESR since all the caps are in parallel. It is also cost driven. Many smaller capacitors are cheaper than one big one.

The disadvantage is taking up so much board real estate. Yes, the major disadvantage is trouble shooting a problem. Imagine one of those capacitors is shorted. It would be really tedious taking them out one by one till you found it. :grimacing:

Just measure each one? It would take 2 minutes.

Wouldn’t that be difficult if they were connected in parallel?

1 Like

Correct. Since they are in parallel, the only way to test them is to pull them out one by one. Some capacitors only fail under full voltage, so just measuring the capacitance is not enough.

2 Likes

Of course! Thanks

Different front panels???

I recon the first picture showing the innards is not a complete build, the meter panel is missing as are the wires and transformer fixings.

Omitted for clarity?

Change of direction - something mechanical to study - after all the great electronics “insides”.

Here is my 34 year old Linn Ittok LVII, whilst with specialists - Audio Origami - for a bit of tonearm TLC and a “bearing strip / service repair”…


Image 1 : Start - complete tonearm with just counter weight missing.


Image 2 : Underside of antiskate and vertical tracking mechanism.


Image 3 : Antiskate and VT tracking removed, base of bearing assembly / housing can be seen.


Image 4 : Another view of lateral bearing housing, with outer casing removed.


Image 5 : The 5 pin din tonearm wiring base connection being removed.


Image 6 : Bearing assembly removed.


Image 7 : Finally - inside - housing and bearings laid bear for all to see.

At this point, bearings can be inspected and replaced, if necessary. As well as housing being cleaned and new lubricant, before re-assembled as above - in reverse order, etc.

My sincere thanks to the brilliant Johnnie
(Picture credits : Audio Origami)

18 Likes

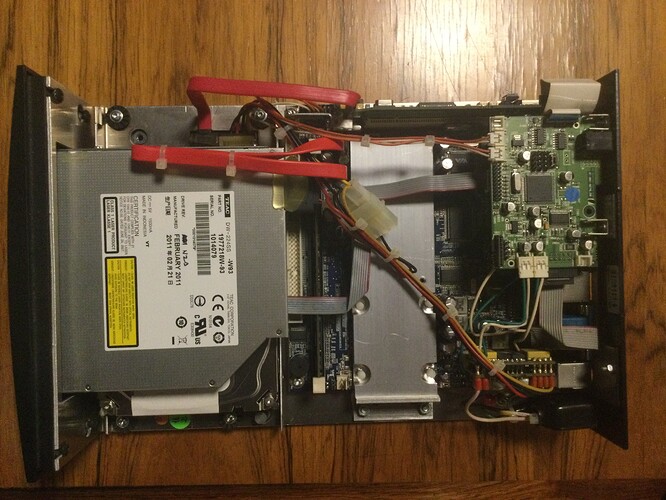

Inside my prestine U-Serve. 2012 model. Not as beautiful as the Linn Ittok though.

2 Likes

I appreciate this is a little off topic but, I’d love to hear your thoughts on your arm post service. I’m thinking about the same for my Ittok, probably with a rewire too

Correction 2011 model.

Hi @audioade. In this case, my much loved LP12 c/w Ittok went in to my dealer for TLC. A “swing test” very quickly asked questions about these bearing and so it went off to a specialist - Audio Origami - for further investigation.

It only natural after 30+ years these bearing might need to be considered. They get a lot of wear.

No decisions were made about internal wiring, so can’t comment on this aspect.

Hope this helps you?

This thread is strangely addictive

2 Likes

Not advocating this. . just showing the picture :wink:

Sorry
Cannot comment on this
Picture only !!
And may have overstepped the line with that

Just dont open any NVA stuff … thats asking for trouble. :joy::joy::joy:

For the absence of any doubt, showing pictures of Naim kit with unauthorised modifications is DEFINITELY in breach of forum rules. Please do not post up pictures of unauthorised modified Naim kit. Thanks.
