Mark84
September 4, 2023, 12:10am
1
Hi all.
It was a popular thread last time round, so I thought I’d post this build too. I have made this speaker before and I loved it. A friend also loved it so he bought it from me. I then built a different pair of speakers, which some of you are probably familiar with. Since I sold them, I have missed them greatly. They just had a magical synergy with my room and my ears. The time has come to rebuild!
Troels Gravesen - FUSION 3 way classic - passive version.
1” Tweeter
6” Midrange
12” Bass
13 Likes
Mark84
September 4, 2023, 2:27am
2

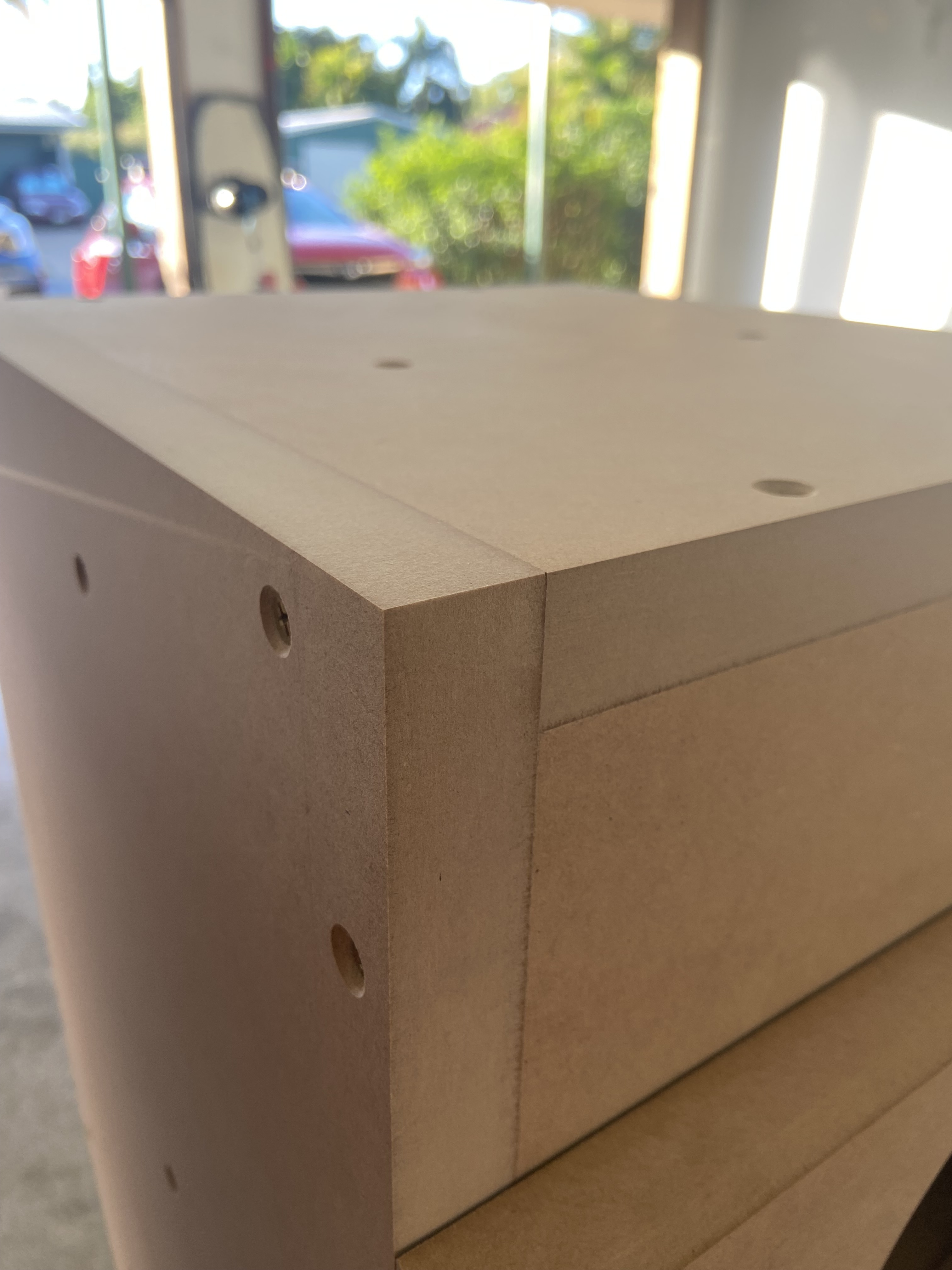

Very simple cabs. Nothing flash. Butt joints, glued and screwed. Easy and fast.
4 Likes
Mark84
September 4, 2023, 10:13am
4
I’ve added some depth to the construction and used double thickness panels in a few places to fill the extra volume. Like behind the midrange cab and the top and bottom.
2 Likes
Mark84
September 4, 2023, 10:16am
5
Bracing added. All panels are 25mm MDF. Bar the lower brace. Tweeter panel in place.
Mark84
September 4, 2023, 10:19am
6
One of the bass drivers. For marking up the hole in the front panel.
1 Like
Mark84
September 4, 2023, 10:21am
7
Routing driver holes. Always nerve racking. Many cuts but no room for error.
3 Likes
Mark84
September 4, 2023, 10:25am
8
Midrange hole routed too.
2 Likes
Mark84
September 4, 2023, 10:29am
10

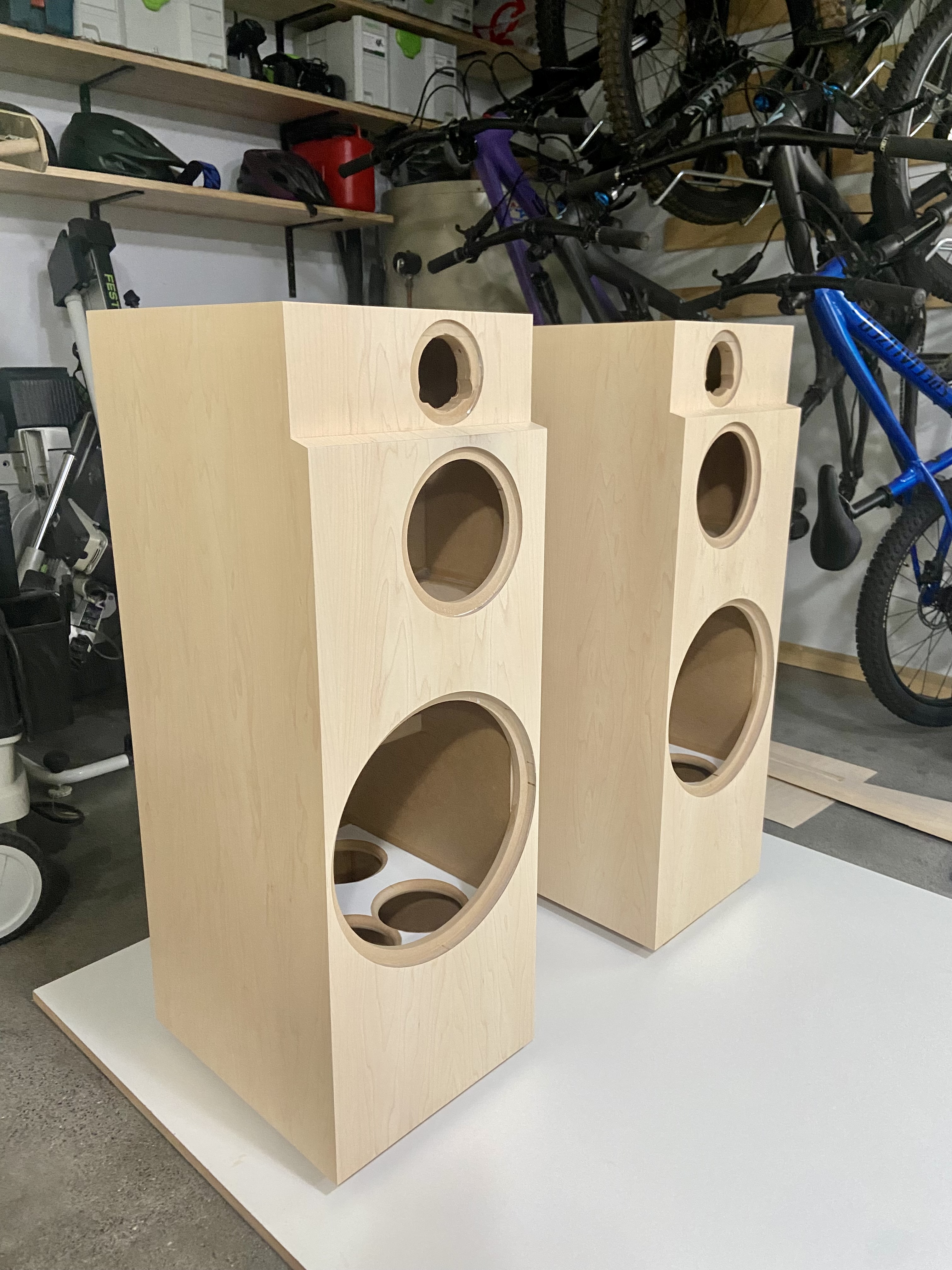

I surprised myself with how much I got done over the weekend.
Mark84
September 4, 2023, 10:30am
11
Today after work I routed the tweeter holes.
2 Likes
Mark84
September 4, 2023, 10:34am
12
Then a good sand all over.
6 Likes
gthack
September 4, 2023, 10:38am
13
What soldering iron do you use for the x-overs? Been looking at a few, think I’m coming down to a Hakko
Mark84
September 4, 2023, 10:46am
14
To be completely honest I don’t know. It’s just from the DIY store. Nothing special. 60 watts. Has lasted me years.
1 Like
gthack
September 4, 2023, 10:47am
15
You can see why I haven’t started any builds yet can’t you X)
2 Likes
Mark84
September 4, 2023, 10:49am
16
HA! If it takes you this long to settle on a soldering iron….
2 Likes
n-lot
September 4, 2023, 3:36pm
17
Troels mentions both the temp and tip that he uses. Since you haven’t needed one so far, you’ll be unlikely to use it loads after.
Just get a cheap one that has replaceable tips and allows you to control the temperature. It will do the job fine.
Mine is exactly like that and has served me (sporadically) for about two decades.
1 Like
Mark63
September 14, 2023, 4:22pm
18
@Mark84 Just spotted this Mark, great to see another build
What are you going to do with your current speakers?
Mark84
September 17, 2023, 10:08am
19
My highly technical veneer press back in use.
3 Likes
