Hi @TOBYJUG,
…There will be some beautiful official under the bonnet inside shots from our Marketing team. In the meantime, here’s some blurry iPhone photos straight from the R&D workbench.
Please bear in mind these are prototypes and do have modifications. They will have been taken apart many times and their condition shows this. Production units are fanatically built.
NAC 332
Note: The top input selecting PCB obscures the main lower PCB.
NSS 333

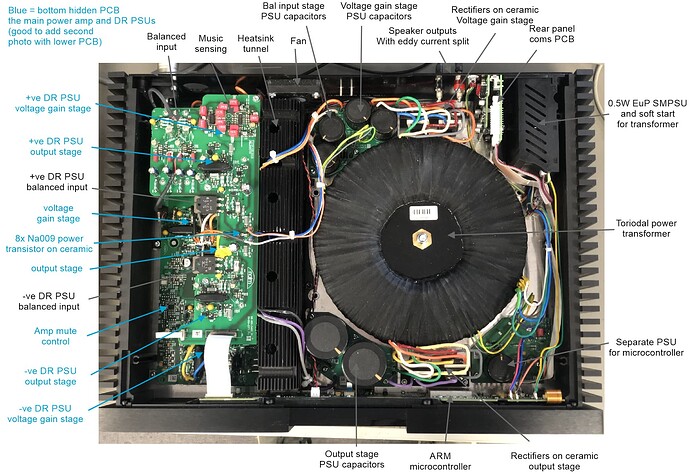

NAP 350
Note: The actual power amp PCB with dual sets of NA009 power transistors and DR regs with dual NA009 are hidden under the top PCB (balanced input circuits, their DR PSUs and music sensing).
Best
Steve
