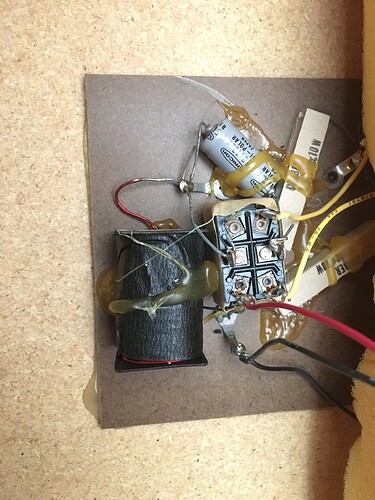

Let’s see how astute you guys are and see if you can recognize what crossover this is inside of.
Looks like a switch to set the tweeter level is sitting between the connection terminals. Large Advent ?
1 Like
Ah, that might be Nick Bacon of Wave High Fidelity cables fame. Nick’s DAVE is powered by a Sean Jacobs DC4 linear power supply.
Apparently, Rob Watts wants to hear it but the conversion was done just before the pandemic struck, so has not been able to yet.
This completely invalidates the Chord warranty but is apparently an “astonishing” upgrade. I’d like to hear it one day.
Best regards, BF
2 Likes
Bonkers !
1 Like
Cat sick seems to be a key component :0)
1 Like
Ding ding ding!
You got it.
1 Like

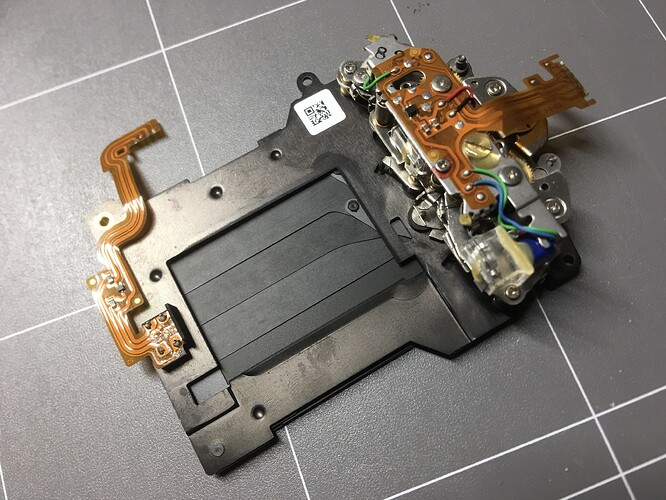

Anyone recognise this shutter? Impressively rated at 300,000 actuations and did way more before giving up.
1 Like
Nikon??
Yep, 1/2 way there.
OK, it is well built, metal rather than plastic, D700?..
(Could check shutter life on the specs…more fun to guess…)
It’s d3s. Lovely tough machine. Loud and distinctive when you hear it at press.
Ah I got the well made metal construction, just did not think you could have worn it out!!
Fine camera but heavy…
Haha, we try hard on the field. But yeah it is tough as a rock. I had dropped the camera from 1.5m on concrete and didn’t break it. Snapped the lens into two of course.
The 24-70mm f/2.8 notorious needing re-greasing after some time. Thank God I have insurance.
Btw, they are very well balanced so don’t feel too bad except for day long shoots.
Something a bit more “retro” to study.
This is the inside on my 1986 Linn LP12, which is stock, as originally supplied.
Features of note :
- Valhalla power supply board
- Corner bracing
- Pressed steel chassis, with additional strut, glued (not welded)
- Original external tonearm cable and cable dressing
- Original motor
The picture is taken from the underside, whilst on the usual Linn LP12 service jig. (Picture taken while in for service and some upgrade work, with my dealer).
4 Likes
That’s a very clean looking Valhalla with hardly any browning or blackening to the usual overheated areas.
Sure. I think I have been lucky. Over the years, I’ve heard about this topic. Anyway, I’ve spoken with Darren at Class A Audio about giving this board some TLC - “full service, recap and alignment”, etc. Just thinking about that. Weighing this against options to upgrade with external PSU, etc… (It’s in for a service and general look over).

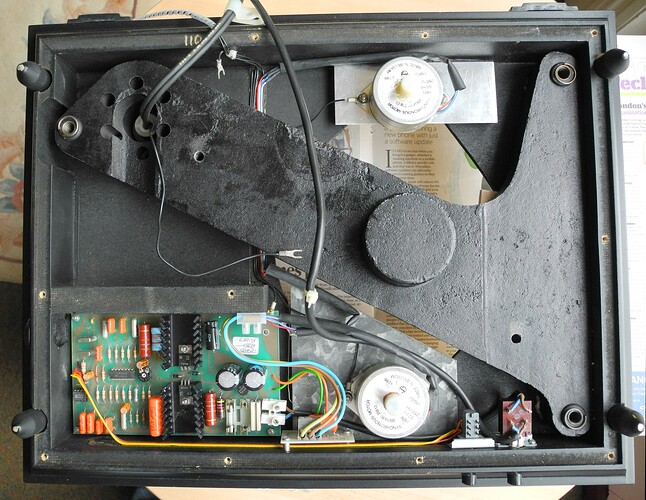

Here is the underside of my Alphason Sonata…
No jig, just rests on the three pillars that hols and adjust the suspension.
Note the heavy iron casting that hold the bearing and arm…
The power supply was a few minutes later bypassed, and tha Atlas psu connected to the connector block, easily reversed if necessary.

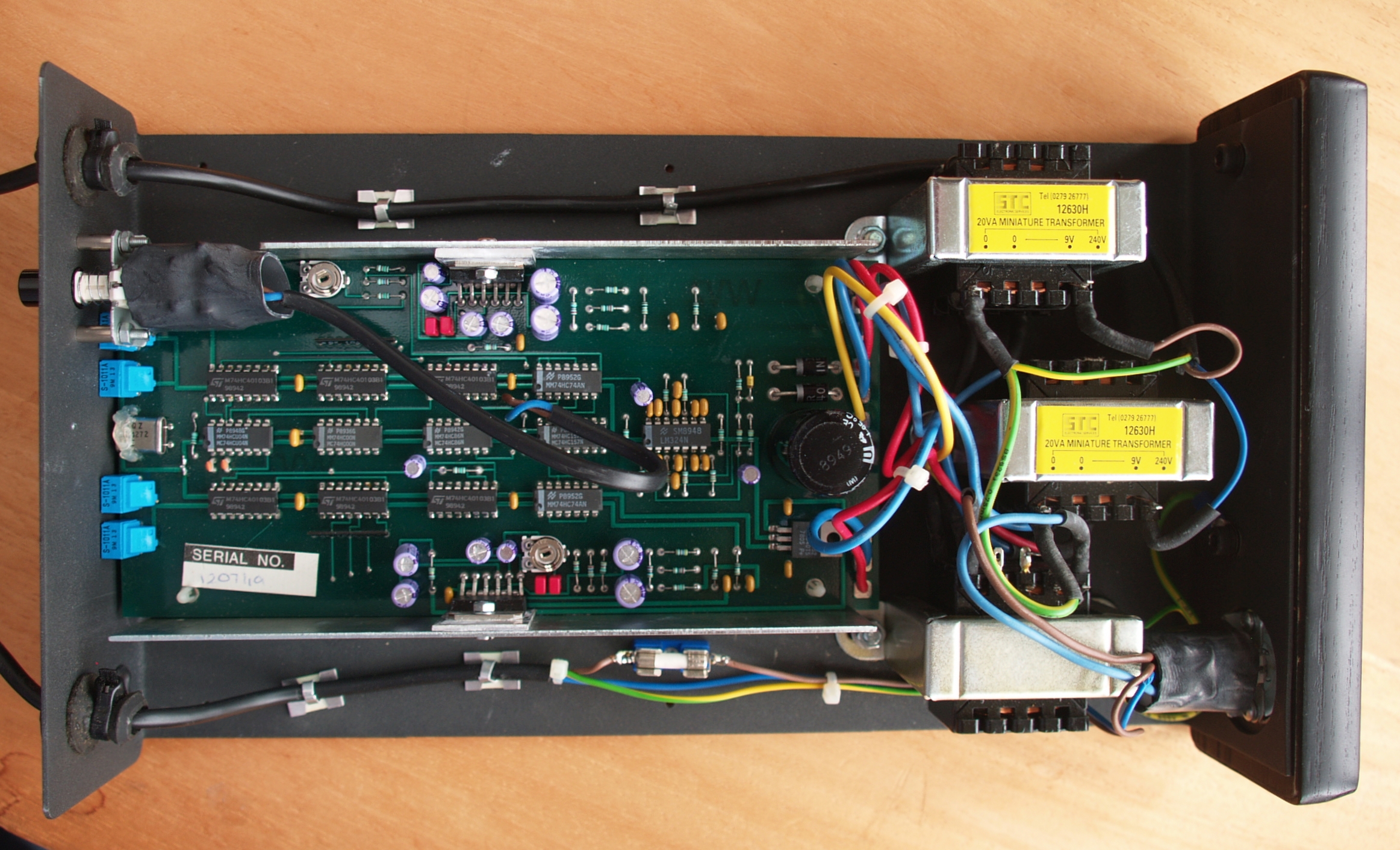

Here is the inside of the Atlas psu, taken many years ago so not as clear as I would like.
1 Like
My thoughts too, mine had brown scorch marks in all the usual places
